LINAC Test 16.01.23

00001: Ensure complete emptying of air

Step Step description Expected result Result
precondition system is off
Switch on the system turn on the pump 95% vacuum Negative

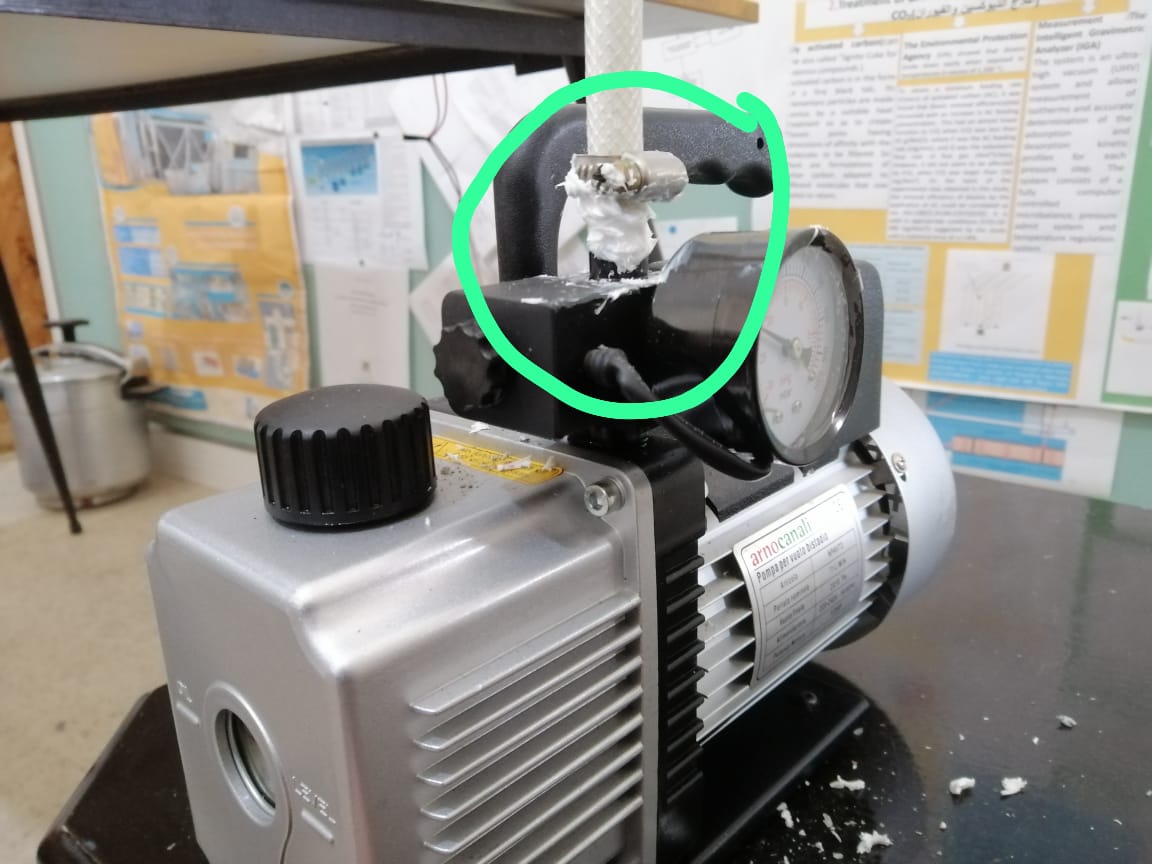

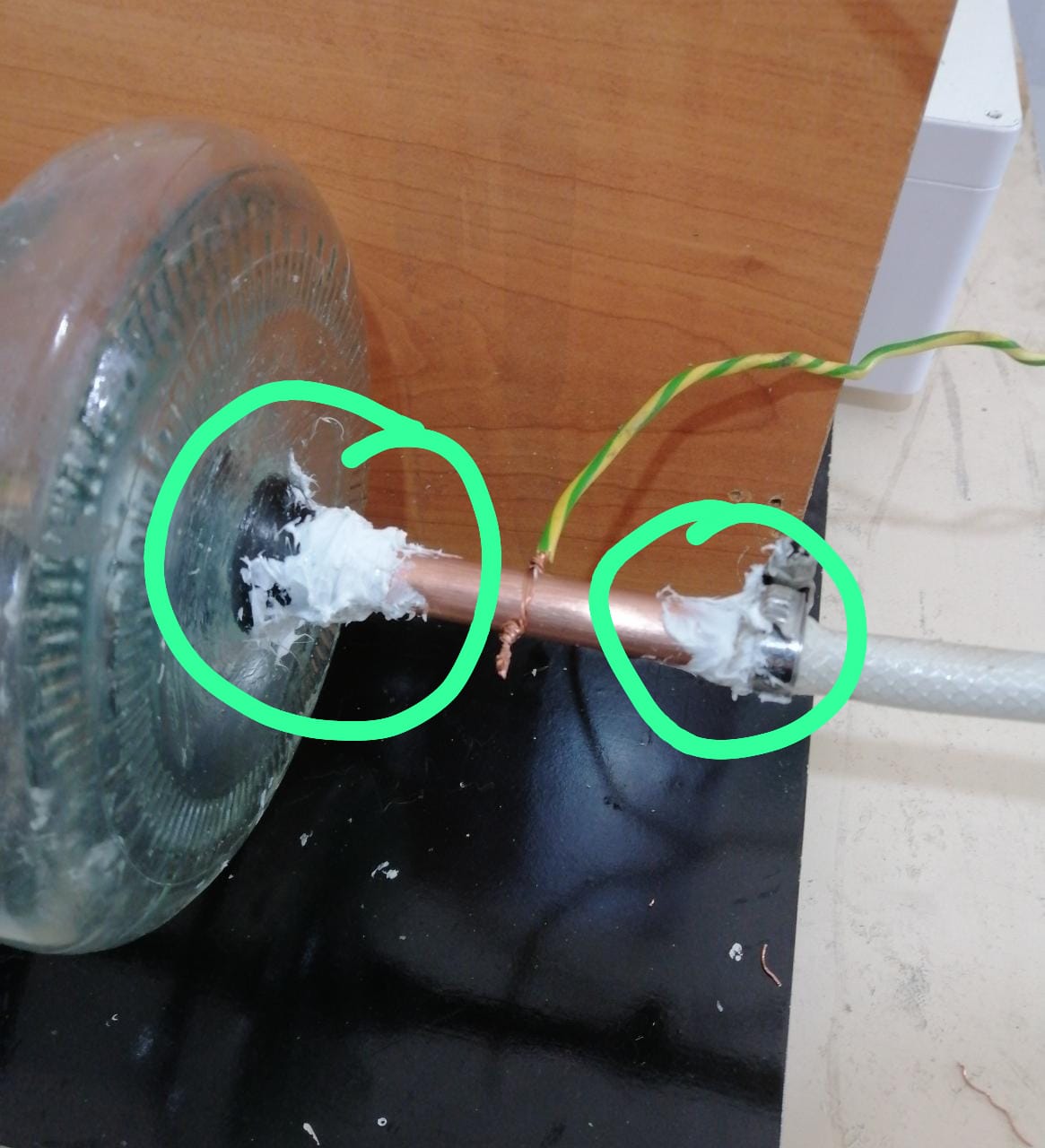

Having a leak we found a leak in the anode, the cathode and the joint between the cathode and the pump hose  Seal the leakage places positive
Switch Off the system Turn Off the pump the pump stops pulling out the air positive
Silicon use Put silicon in places where air leaks Stop leakage and get 95% vacuum positive
Postcondition System is off


Analysis of the test results:

When we turned on the pump, we found that the vacuum had not been completed yet, and we knew where the air was leaking.

What we did:

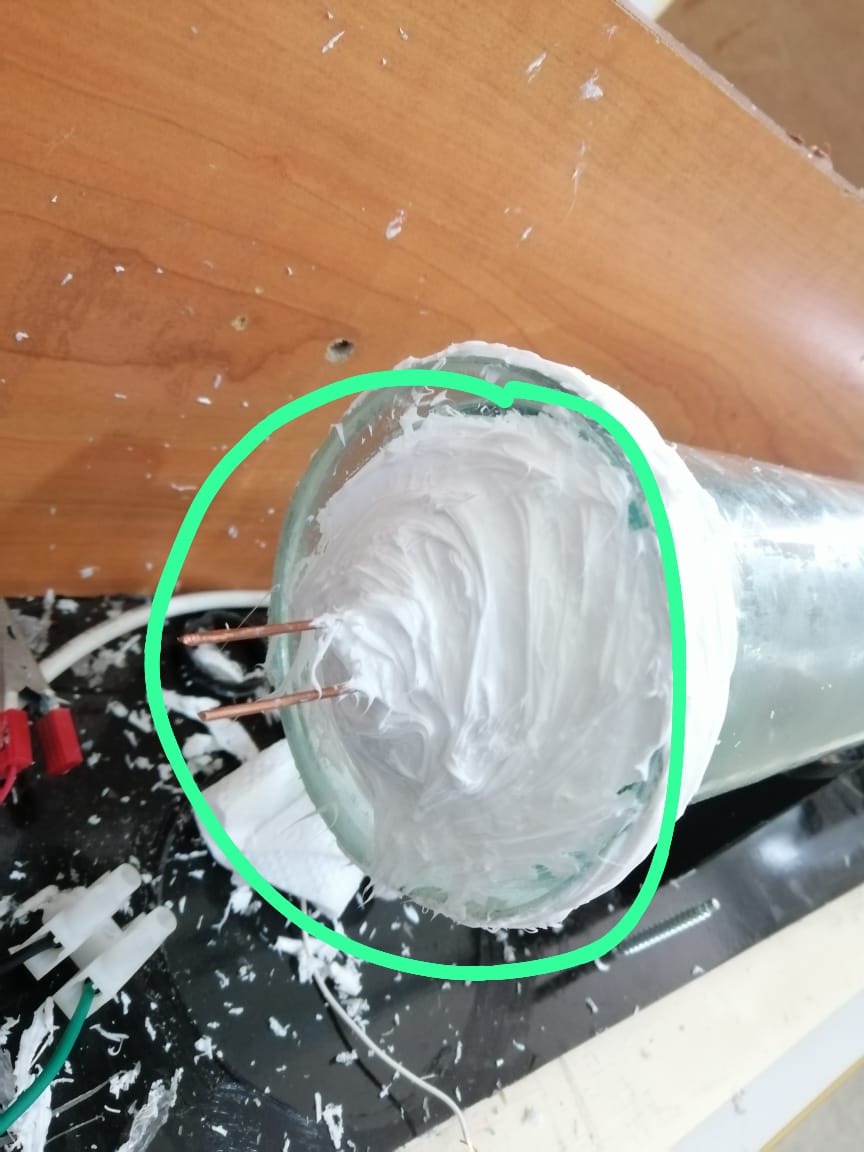

So we sealed the leaks with silicone.
