LOX PCS Implementation

The process control system for the LOX system (Version 07/12/2022)



The process control system is the same for the LOX system with/without a heat exchanger (HX) (Version 2021)

LOX system will be controlled via Arduino

The System (2021):

Circuit fabrication (2021):

Check the simulated PCB Design for more information (2021):

Gerber_PCB_LiquidOx.zip



Graphical user interface (Version 2022)

 Graphical User Interface code (C#)



The Material Used (Version 2022)

1-Temperature Controller TE4-DC18W

   http://www.sah.rs/media/sah/techdocs/te-w_manual.pdf

2-Temperature sensor PT100

3-Pressure Sensor HDP500 (0-10V Output, 0-10Mpa)

  https://v1.cecdn.yun300.cn/100001_1908285038/HDP500%20Small%20Pressure%20Transmitter.pdf

4-Cyrogenic Solenoid Valve

https://smstork.com/uploads/files/urunlerimiz/S9610-EN.pdf

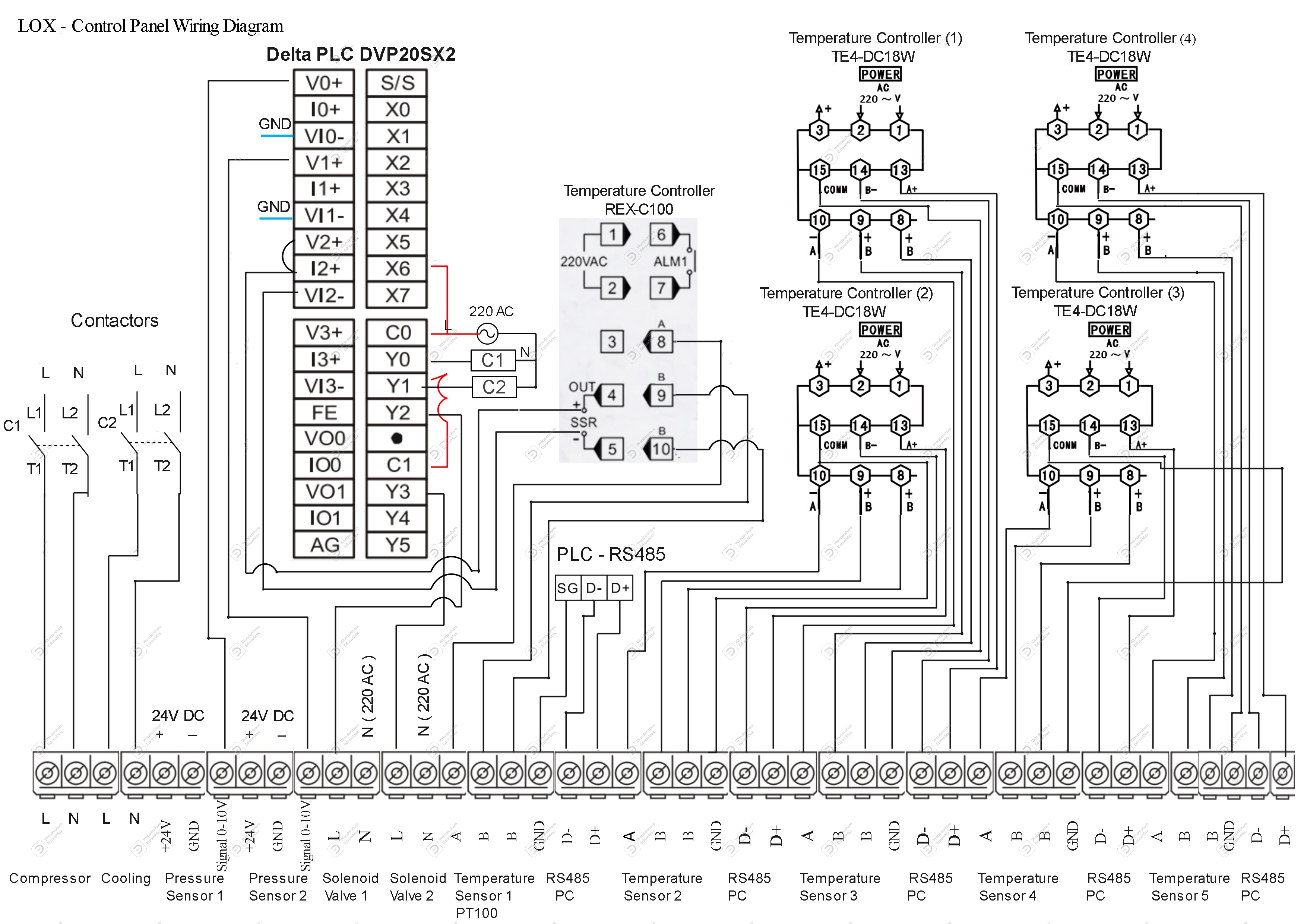

Control Panel Wiring Diagram (Version 2022)

Control Panel Wiring Diagram
