Flue Gas Analysis with Mass Spectrometry

Detector of mass spectrometer:

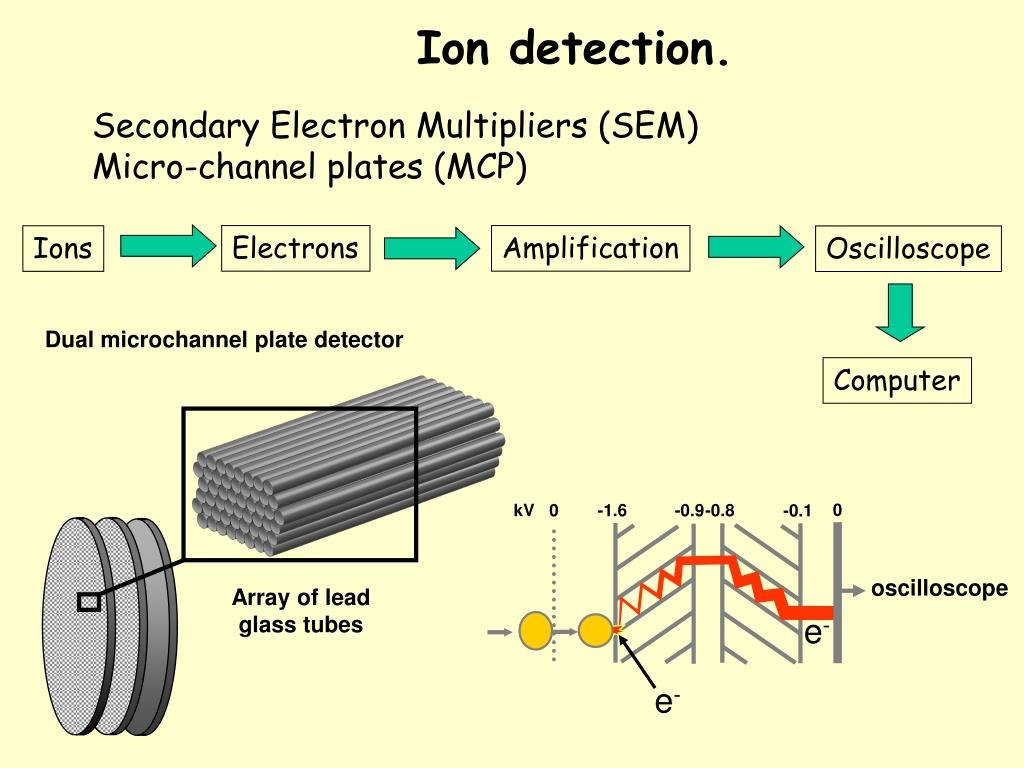

The electron multiplier is the most common detector. The signal is amplified by the formation of secondary electrons using lead-doped glass tubes (dynode). It has good sensitivity, with strong amplification but it is less precise than the Faraday cylinder. It also has a limited lifespan.

We have a many types of electrons multiplier detectors; the best one to use in our case is R4146-10.

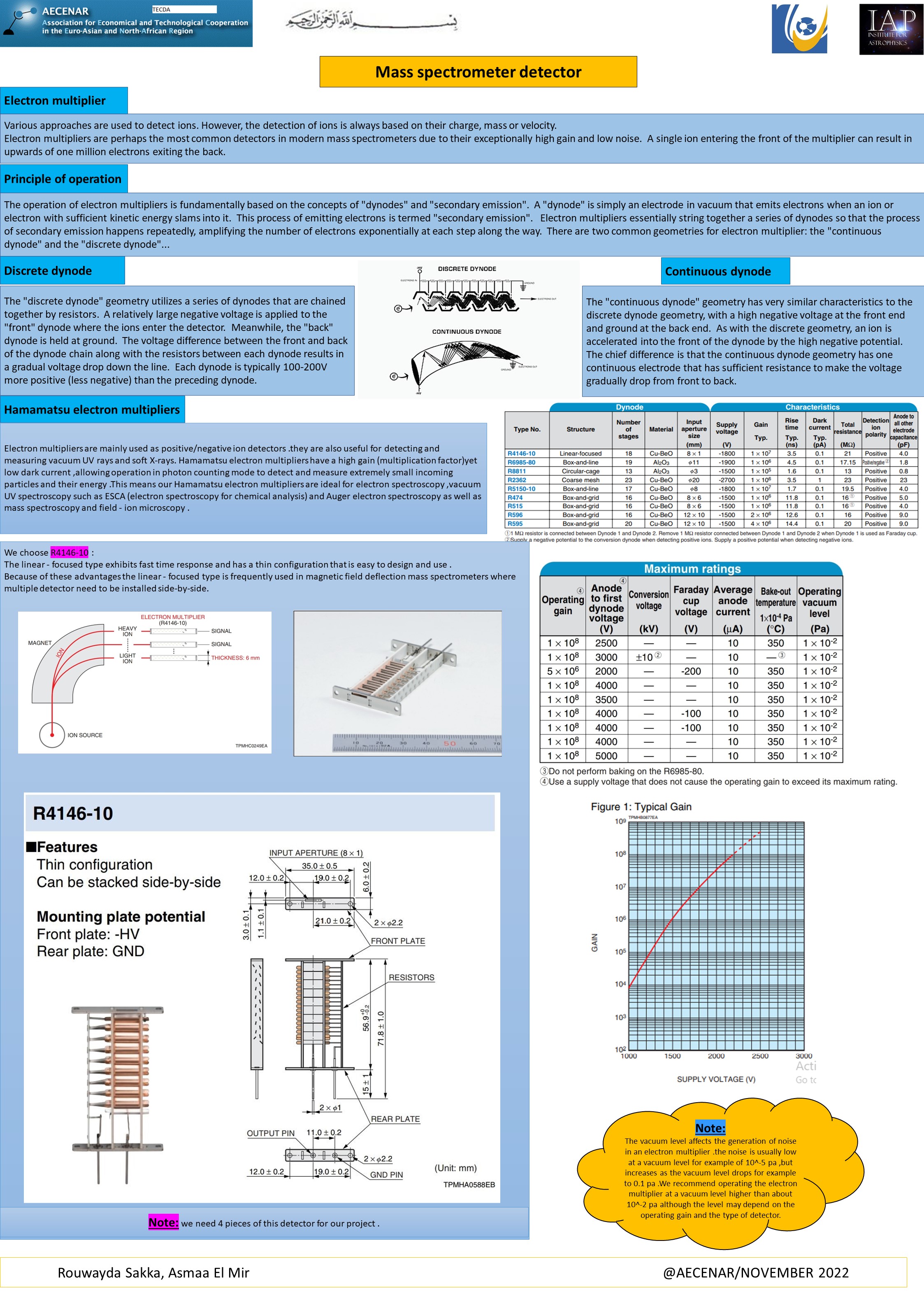

Mass spectrometer detector(poster) (last update:30.11.2022)



Mass spectrometer (poster) (last update:16.9.2022)

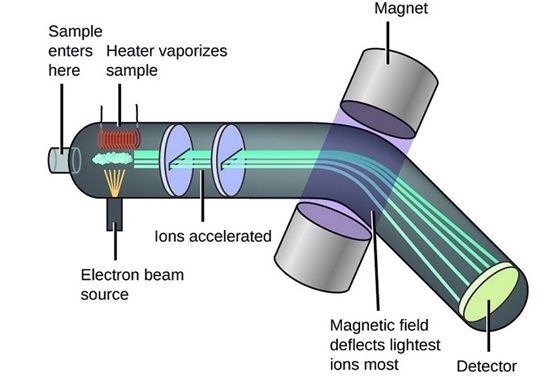

Magnetic sector mass spectrometry (poster) ( last update:23.8.2022)



Detector:





Concept of INT-MassSpectrometer for Municipal Waste Incineration Flue Gas (docx)

Concept of INT-MassSpectrometer for Municipal Waste Incineration Flue Gas (pdf)
