NLAP-IPP Process Control System Specification/Design



NLAP-Incineration Power Plant Process Control System

Documentation:

NLAP-IPP PCS (PLC+GUI) (pdf)

NLAP-IPP PCS (PLC+GUI) (docx)

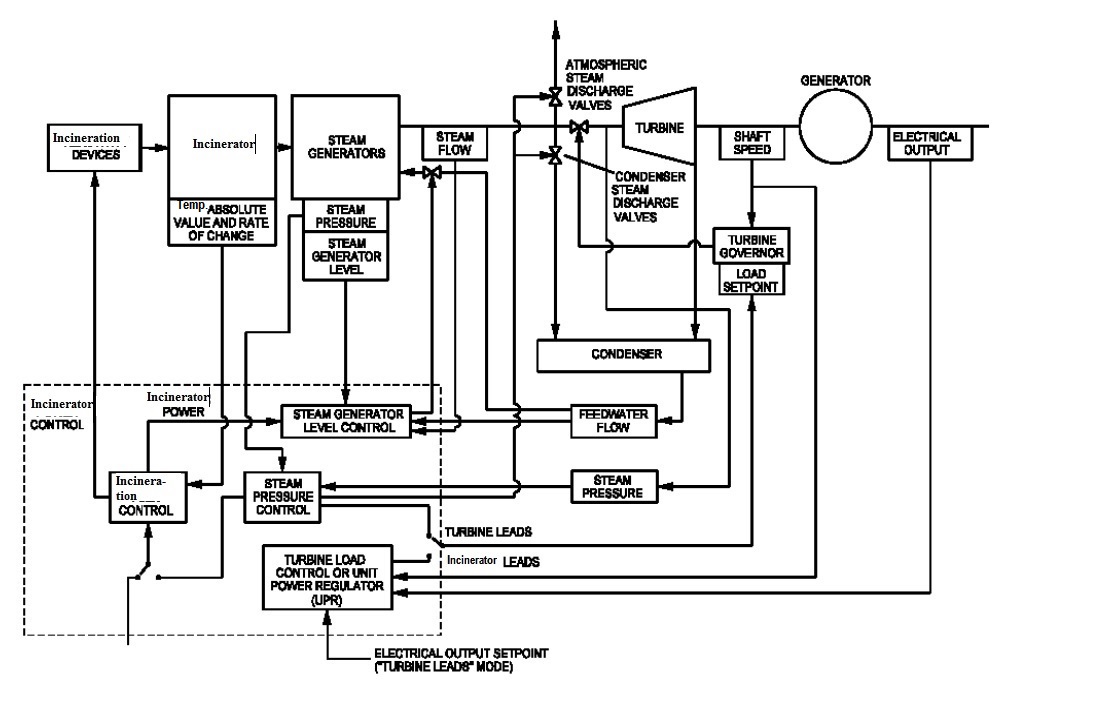

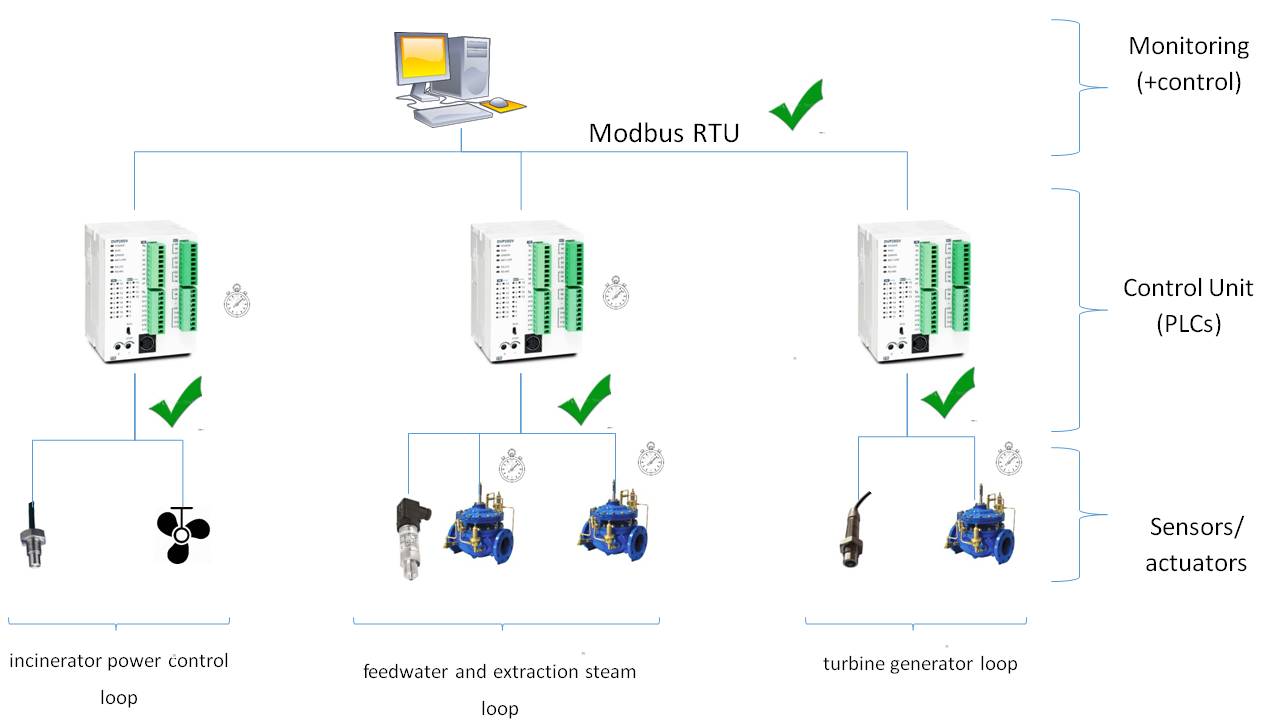

NLAP-IPP PCS Platform, Report 2018 (Description of control loops)

NLAP-IPP-PCS (interface) (docx)

NLAP-IPP_PCS(Modbus address on the PLC) (xlsx)

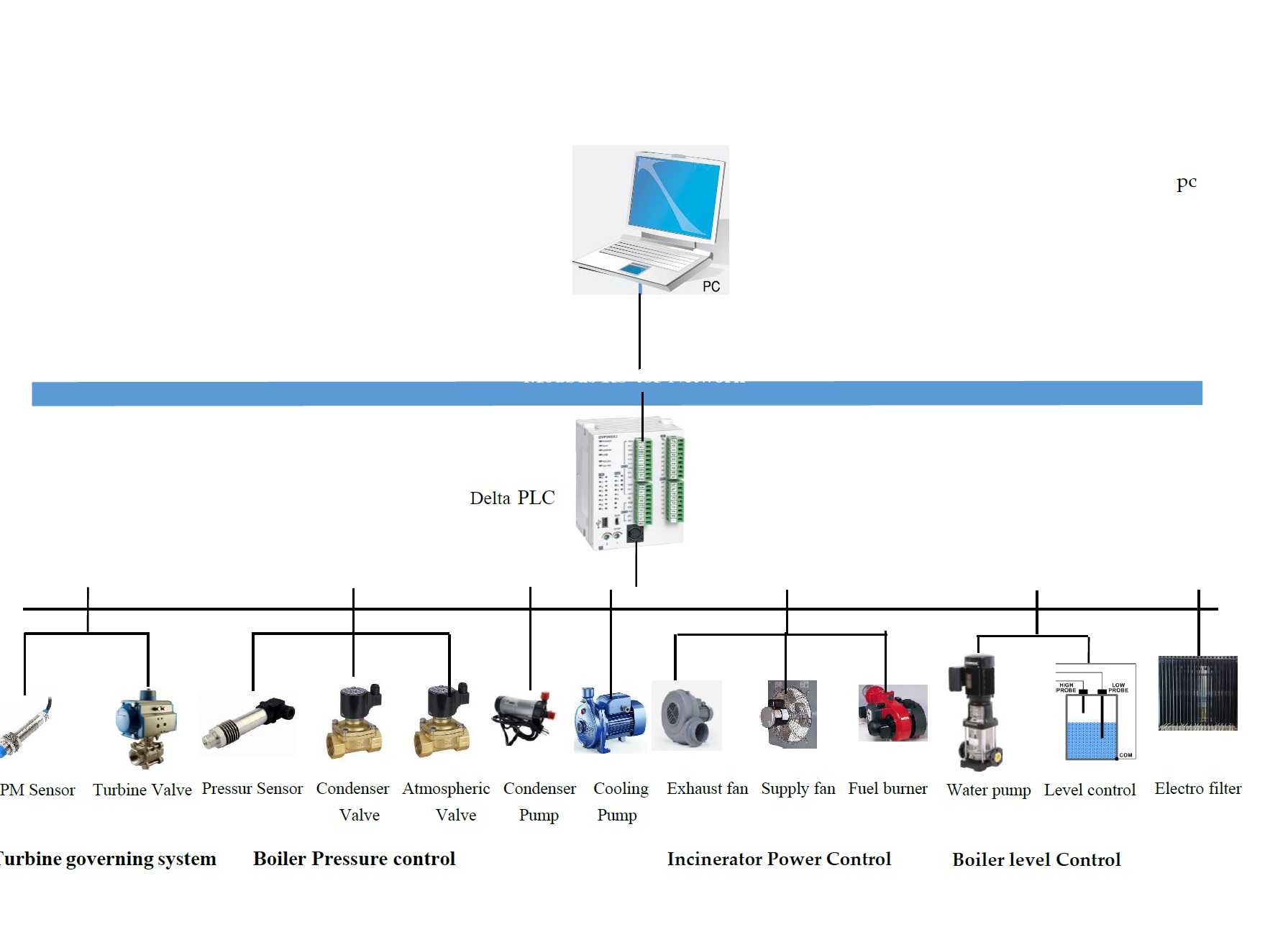

NLAP-IPP Instruments (last update: 10.10.23):



1-Control system

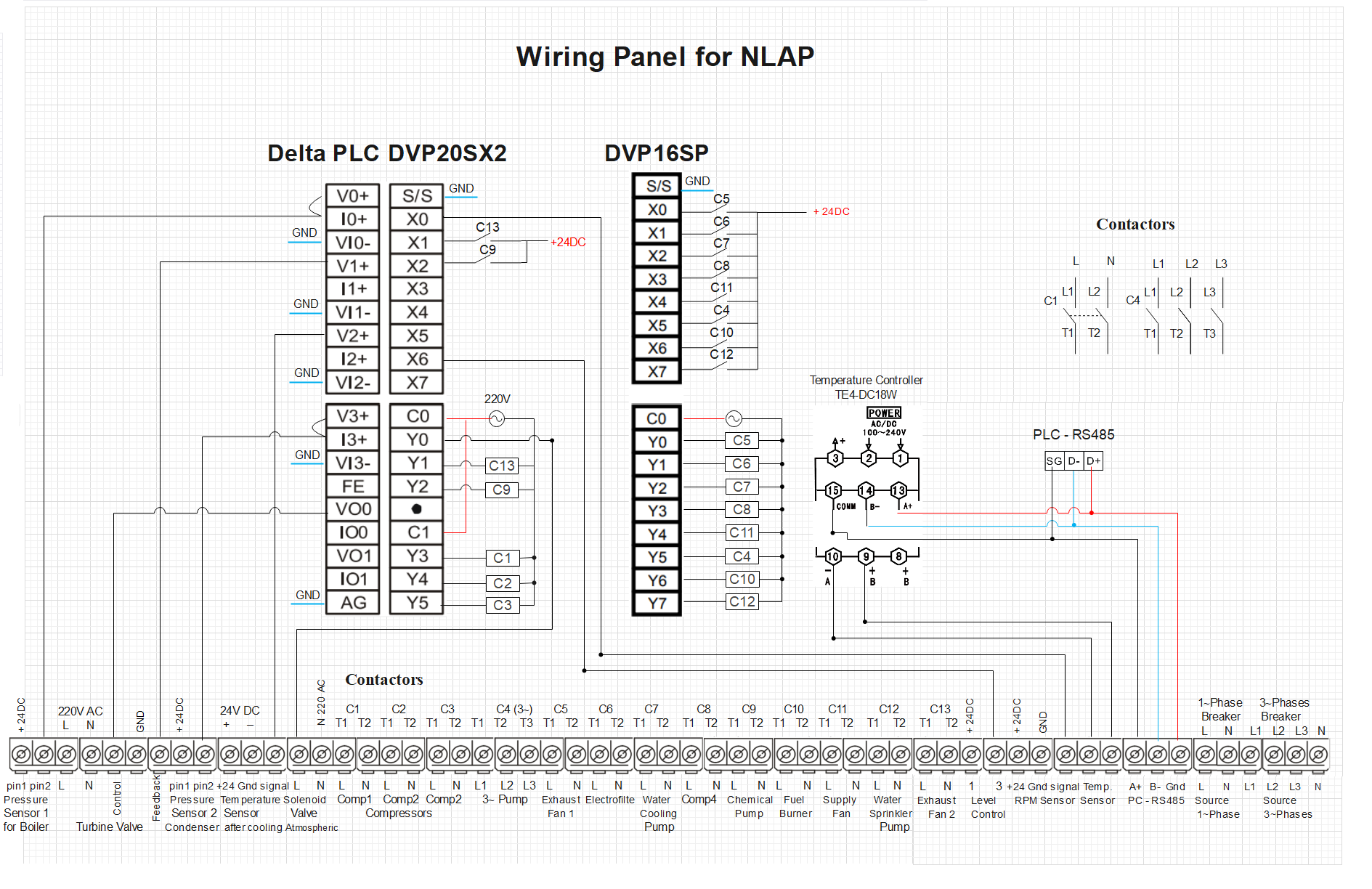

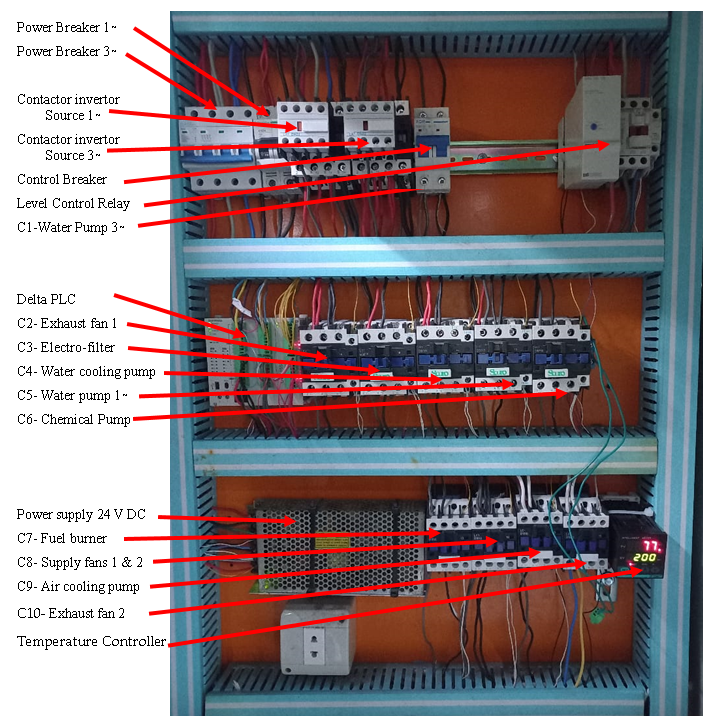

2- Control Panel

3-Turbine Govering System (TGS)





Code repository:

GUI (C#) Source Code
PLC Ladder Code
